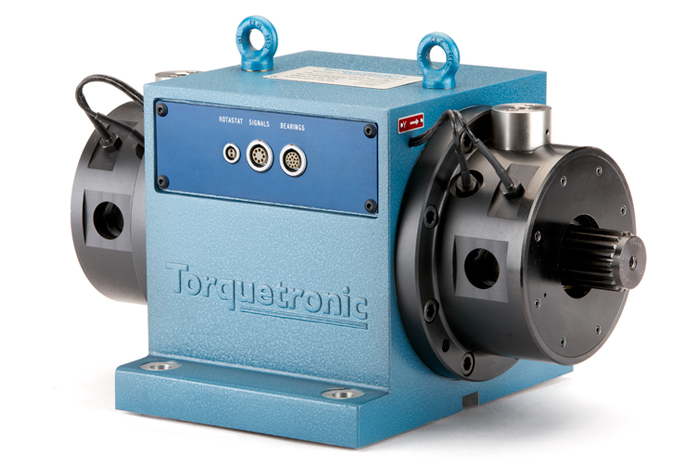

The Torquetronic™ ET range of high-precision phase shift torquemeters provide 0.1% accuracy for full-load torque from 0.1 to 75,000 Nm with operating speeds of up to 120,000 rpm. Thanks to its proven accuracy and reliability, the Torquetronic™ ET product line is almost exclusively used by the major turboshaft engine manufacturers GE, PW, RR, Honeywell, Turbomeca, and others, for the development, production and overhaul testing of engines on fixed test stands such as the T700, Makila, RTM322, PT6, GE 38, etc.
The company deploys an experienced engineering team and precision manufacturing facility to design and manufacture system solutions for custom applications as a matter of course. An example are the high-speed Tordisc™ couplings necessary to couple the torquemeter to the driving and driven machines.
The Torquetronic™ torque measurement system has the following benefits:
- Accuracy of 0.1% of full scale
- Speed rating of up to 120,000 rev/min
- Torque rating ranging from 0.1 to 77,000 Nm
- No rotating electronics
- Proven reliability & stability
- In-service calibration facility
- Integrated system solution
