800 series of readouts

The 800 family of products provides a flexible display and data acquisition platform for all Torquetronic™ measurement systems. It allows steady-state torque and real-time torsional vibration data to be processed and displayed seamlessly.

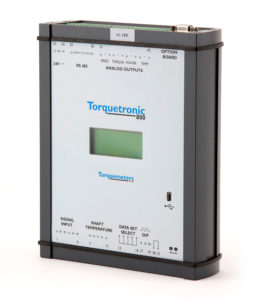

Designed to accurately measure and analyse Torquetronic™ signals at a sample rate of 10 kHz, the 810 signal processor is at the core of the 800 family. It provides an LCD display for power, speed, torque and temperature, and can supply the measurements as four analogue outputs or digitally via MODBUS protocol over Ethernet, RS485 or USB.

The 816 is a reinterpretation of the 810 signal processor within an Exe industrial stainless steel casing. It is designed and certified especially for installation in Zone 2 or Div 2 environments and includes Zener barriers to provide intrinsically safe outputs for connection to the Torquetronic™ torquemeter.

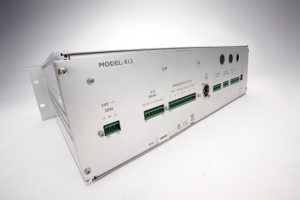

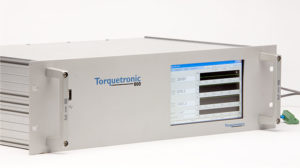

The 813 signal processor and industrial PC are enclosed in a 19-inch industry standard casing. The configuration and measurement analysis software TorqTo™ provides torsional vibration analysis, and the processor is operated via an intuitive HMI interface on a seven-inch touchscreen display. The standard displays are FFT, Campbell, Waterfall Plot and Order Analysis.

The 803 runs TorqTo™ and provides remote operation via a seven-inch touchscreen. The control room unit communicates remotely with the field-mounted 810/816 signal processor over Ethernet or RS485.
